Performance Characteristics

This machine has introduced advanced German technology; The straight-through sandblasting valve is adopted, which completely solves the blockage of abrasive, and the speed of sandblasting outlet can reach 200m/s; Sand valve is an important accessory of sandblasting machine. Its main function is to control the opening and closing of sand materials and adjust the sand flow rate during sandblasting. The quality of the sand valve directly affects whether the sandblasting machine can work normally. This type of sandblasting machine adopts the sand valve produced by our company, which adopts the technology of SCHMIDT Company of the United States. It has the characteristics of reliable quality, convenient adjustment, simple maintenance and so on, and is a kind of structure widely used in the world. The opening of the sand valve is controlled by air pressure, and its action process is that when there is an air pressure signal at the control port, the piston of the sand valve drives the valve stem to jack up, and the sand valve opens. By adjusting the position of the adjusting cap, the opening amount of the sand valve can be adjusted to control the sand flow rate, and the opening amount of the sand valve can be adjusted steplessly. In the sand valve, the valve stem and valve sleeve contacting with the sand are made of hard gold aluminum carbide, thus prolonging the service life of the sand valve.
This machine adopts the pressure-feeding sandblasting mechanism, that is, the compressed air flows at a high speed in the high-pressure tank to act as a high pressure, and the sand in the high-pressure tank is sprayed out through the sand conveying pipe, and then sprayed to the workpiece surface by the spray gun nozzle at a high speed along with the compressed air flow to achieve the purpose of sandblasting.

Scope Of Application

Used for cleaning steel structures, molds, fitness and amusement equipment. Carving of glass and stone tablets, ship building, bridges, mines, machinery, oil pipelines, water conservancy projects, port construction, etc. derusting, flower spraying, descaling and burr removal can also be used in the pretreatment procedures of spraying and electroplating to improve the adhesion of the coating (plating) layer surface. All surface treatments. Used to spray glass shot and strengthen the surface of decorative parts.

Standard Parameter Table

It can replace pickling and phosphating process, and there is no problem of sewage charges. Rapid sandblasting derusting can not only change the surface roughness, but also remove welding slag, burr and flash. High efficiency, low cost and good quality, which is incomparable with traditional chemical and manual rust removal. After sandblasting, the paint has good quality and long coating life, which is a common process method adopted internationally at present.

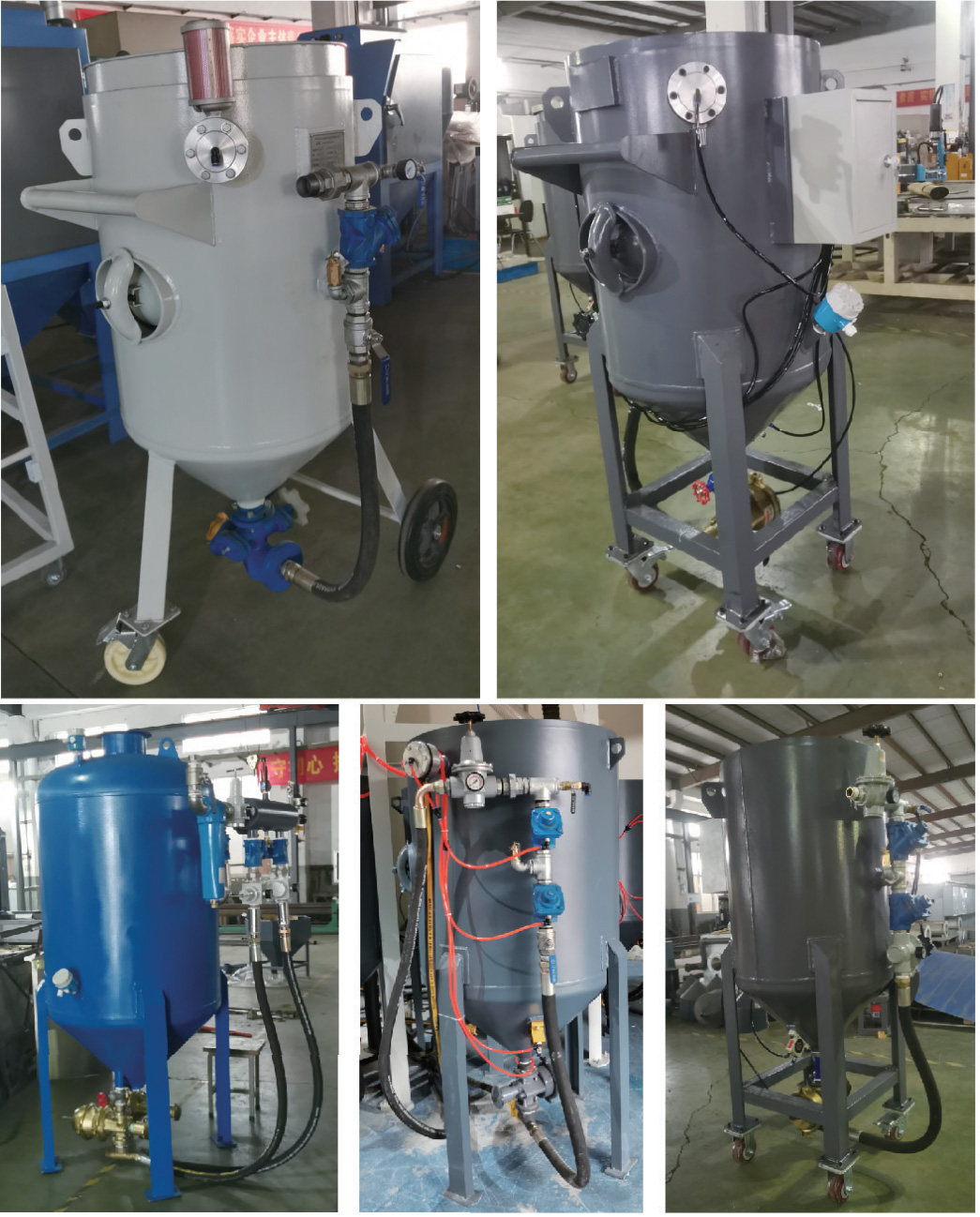

Prototype Display
