Manual environment-friendly sandblasting machine

Performance Characteristics

1.   Advanced design, easy operation, suitable for sandblasting of larger molds or heavy workpieces.

2.   Introduce foreign technology to optimize the design of cyclone separation system, improve sand blasting efficiency, reduce the consumption of consumables, and greatly reduce the use cost of customers.

3.   The new improved dust collector does not produce flowing dust when working, which greatly improves the pollution of dust to the environment and the harm to the health of operators.

4.   Humanized design, small floor space and convenient maintenance and overhaul


Scope Of Application

All kinds of plastic, crafts, hardware decorative surface polishing, remove scratches, improve the roughness, clean the surface; Casting parts, stamping parts, special treatment parts to remove the oxide skin, rust removal, parts refurbishment; Polishing and matte, all metal products, glass, plastic crafts, jewelry, glasses, clocks and watches surface treatment.

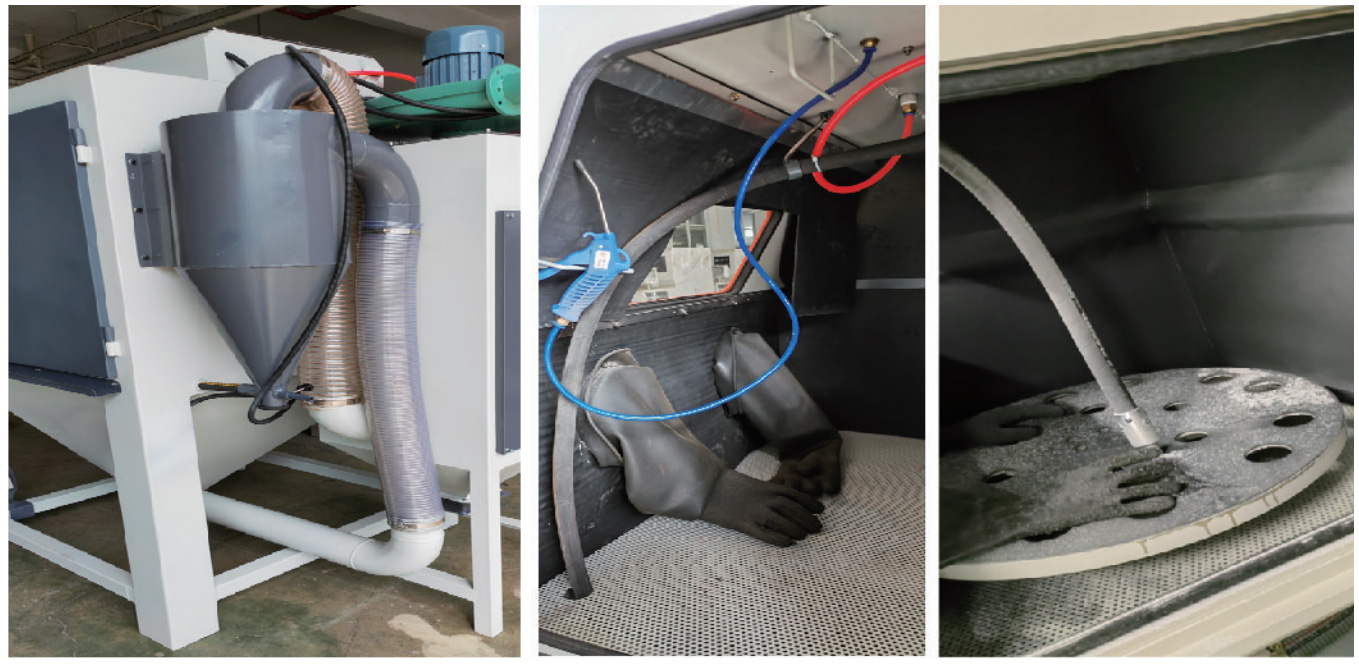

Detail Display
Manual environment-friendly sandblasting machine
Standard Parameter Table

Model

SDX-970A

SDX-970B

SDX-100A

External dimensions

900×1200×1700

900×1200 ×1700

1000×1500×1750

Work cabin size

880×680×600

880×680×600

980×980×700

Sandblasting type

Dry

Dry

Dry

Dust removal method

Precision filter element xl

Precision filter element xl

Precision filter element xl

Dust removal fan

Single-phase 500W

Single-phase 550W

Single-phase 550W

Cyclone separator

Have

No

Have

Total power

0.75KW

0.75KW

0.75KW

Total weight

300KG

330KG

350KG



Model

SDX-100B

SDX-120A

SDX-120B

External dimensions

1000×1500×1750

1200×1700×1849

1200×1700×1850

Work cabin size

980×980×700

ll80×1180×800

1180×1180×800

Tsk sand type

Dry

Dry

Dry

Dust removal method

Precision filter element xl

Precision filter element xl

Precision filter element xl

Dust removal fan

Single-phase 550W

Single-phase 750W

Single-phase 750W

Cyclone separator

No

Have

No

Total power

0.75KW

1.OKW

1.0KW

Total weight

380KG

420KG

450KG

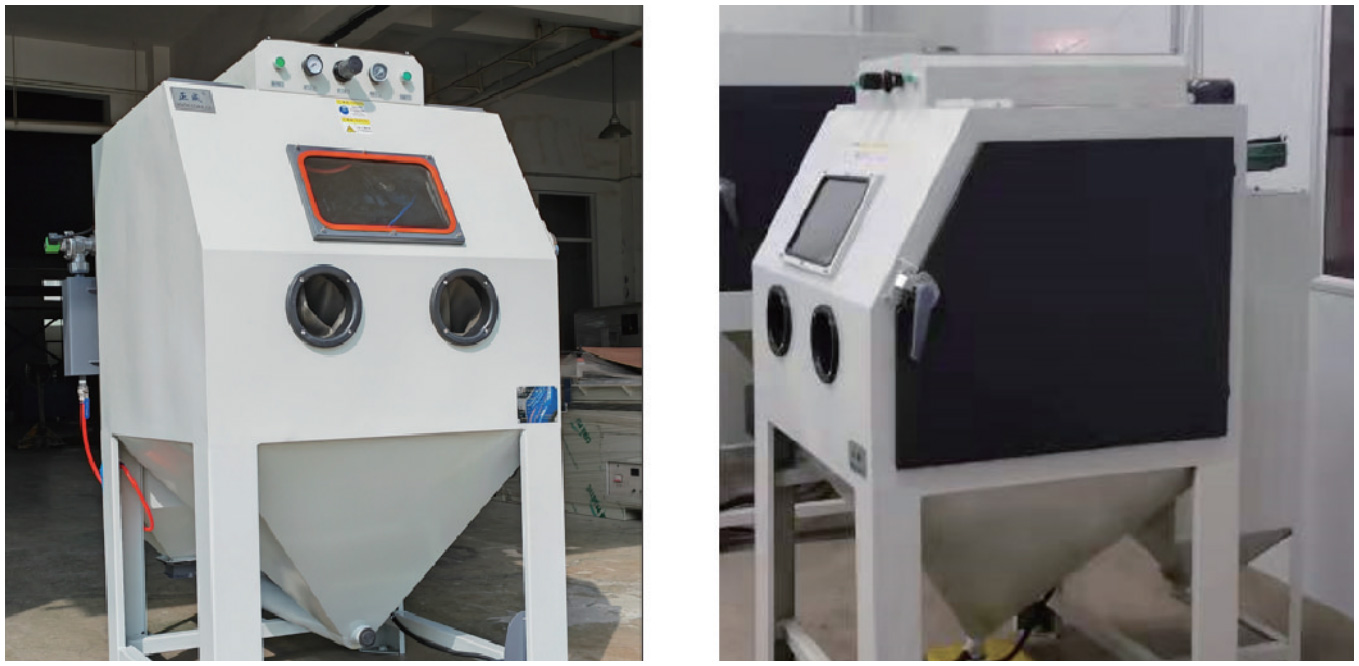

Prototype Display
Manual environment-friendly sandblasting machine
