Performance Characteristics

The main users of crawler shot blasting machine are machine tool factory, automobile factory, spring factory, heat treatment workshop, casting workshop and stamping workshop. The crawler-type shot blasting machine uses the impeller rotating at high speed to throw the shot onto the continuously turned workpiece in the drum to achieve the purpose of cleaning. It is suitable for blasting rust removal, scale removal and surface strengthening of small castings, forgings and stamping parts in various industries, especially for surface cleaning and strengthening of parts that are not afraid of collision. After the casting is shot-blasted, the machined surface is convenient for the next machining process, which not only saves the machining time, but also protects the machine tool and cutter from being damaged; After the non-processed surface is painted, it will not take off for a long time, thus improving the service life and appearance quality of the product.

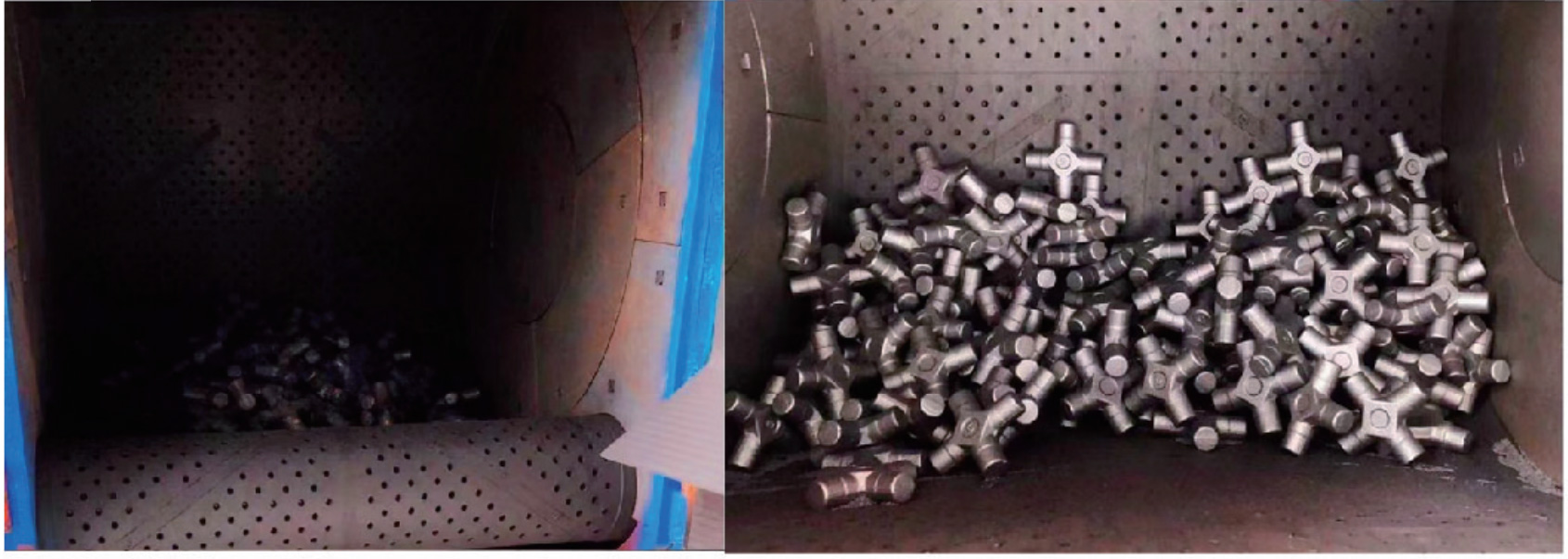

Detail Display

Standard Parameter Table

A specified number of workpieces are added into the cleaning room. After the machine is started, the drum starts to rotate, and the cleaned workpieces are driven by the rubber crawler to continuously and uniformly turn over in the drum. At the same time, the shot blasting device efficiently throws out the shot to form a fan-shaped bullet beam, which evenly hits the surface of the workpiece, thus achieving the purpose of cleaning and strengthening. The thrown pellets and sand particles flow into the steel plate screen at the bottom of the cleaning room through the evenly distributed holes of the rubber crawler. The steel plate screen screens out the steel pellets and fine sand from the larger particles, drops them into the screw conveyor under the screen, and sends them into the elevator, where they are taken to the pellet separator for separation. Dust is sucked to the filter cartridge dust collector by the fan and filtered by the filter cartridge. The clean air emits big air, and the dust on the filter cartridge falls into the dust box at the lower part of the dust collector by pulse back blowing, so that it is cleaned regularly. The old sand flows into the waste sand bucket through the sand flow pipe (provided by the user). The mixture of the larger particles screened by the steel plate in the separator and the unfinished shot sand flows into the cleaning room through the shot pipe. After re-separation, the separated clean shot flows into the shot blasting device again through the shot-flowing pipe to start the shot blasting again.

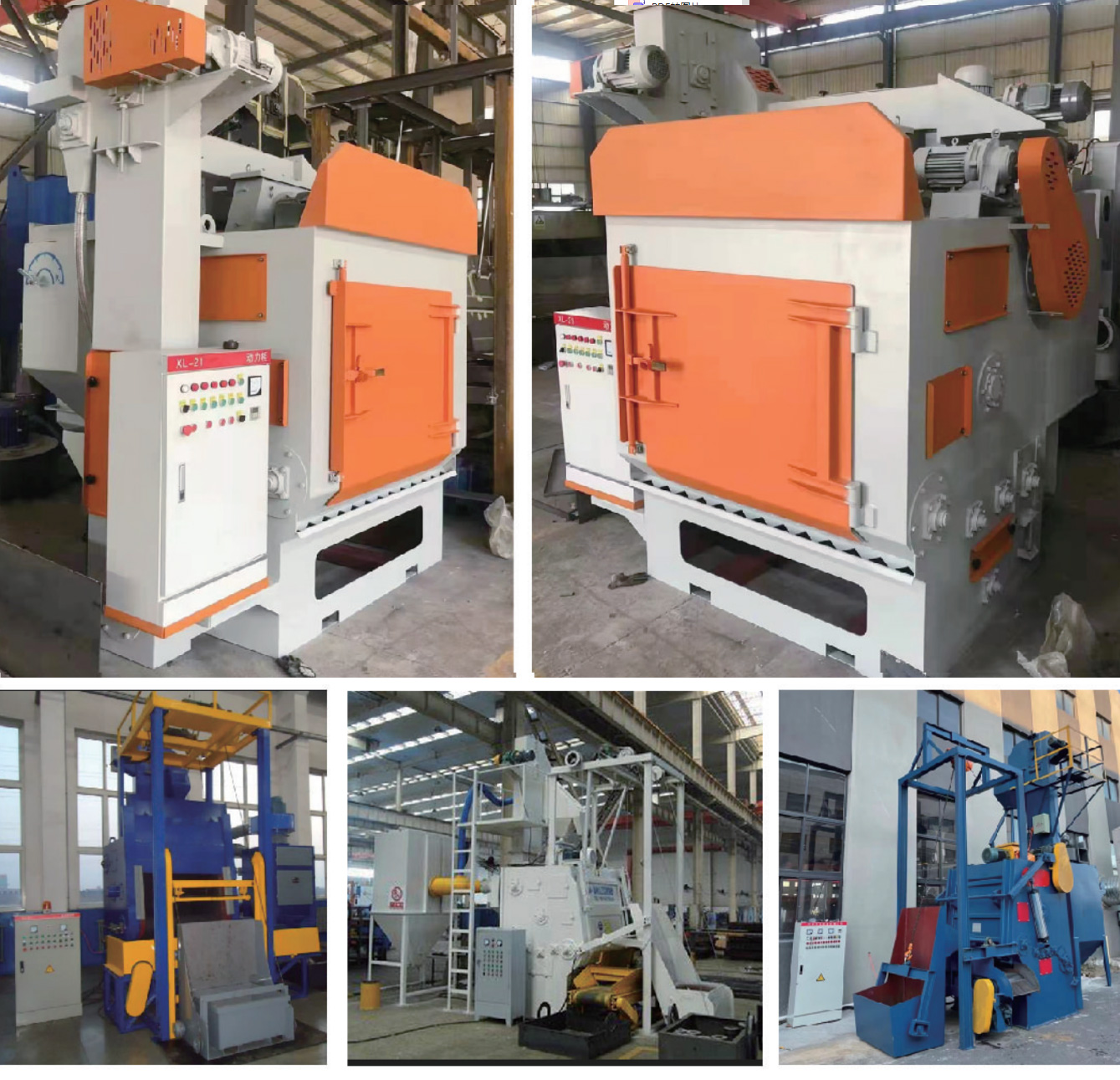

Prototype Display
