Automatic conveyer type sandblasting machine
Performance Characteristics
1.Advanced design, easy operation, suitable for sandblasting of larger molds or heavy workpieces.
2. Introduce foreign technology to optimize the design of cyclone separation system, improve sand blasting efficiency, reduce the consumption of consumables, and greatly reduce the use cost of customers.
3. The new improved dust collector does not produce flowing dust when working, which greatly improves the pollution of dust to the environment and the harm to the health of operators.
4. Humanized design, small floor space and convenient maintenance and overhaul
Scope Of Application
All kinds of plastic, crafts, hardware decorative surface polishing, remove scratches, improve the roughness, clean the surface; Casting parts, stamping parts, special treatment parts to remove the oxide skin,rust removal, parts refurbishmentiPolishing and matte, all metal products, glass, plastic crafts, jewelry, glasses, clocks and watches surface treatment.

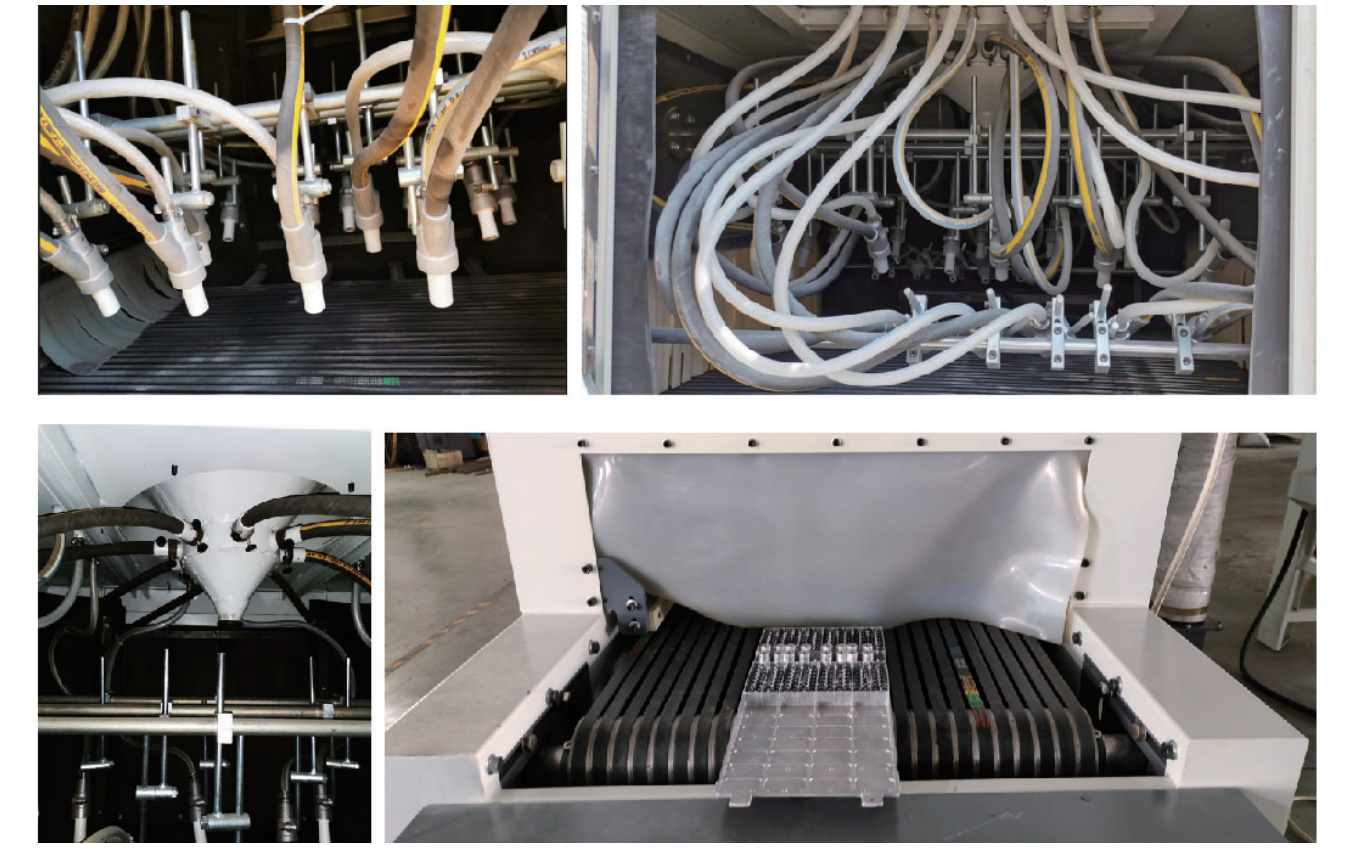

Detail Display
Standard Parameter Table
|
Model |
SPSJX-DS50W-Q6A |
SPSJX-DS60W-Q8A |
SPSJX-DS80W-Q12A |
SPSJX-GT100W-Q12A |
SPSWFJX-DS450W-Q20A |
|
External dimensions |
3300X1600X2450 |
3300*3200*3200 |
3800*3600*3500 |
3800*3900*3500 |
3500*3900*3500 |
|
Dust removal box size |
1200*600*2050 |
1250*1000*3000 |
1250*1000*3000 |
1300*1600*3050 |
1300*1600*3050 |
|
Maximum workpiece size |
Width 500， Unlimited length |
Width 600， Unlimited length |
Width 800， Unlimited length |
Width 1000， Unlimited length |
Width 450， Unlimited length |
|
Operating height |
950±30 |
950±30 |
980±30 |
980±30 |
950±30 |
|
Conveyor speed （mm/ min) |
200-2500 Frequency control |
200-2500 Frequency control |
200-2500 Frequency control |
200-2500 Frequency control |
200-2500 Frequency control |
|
Number of spray guns |
7 |
8 |
12 |
12 |
20 |
|
Abrasive capacity |
50L |
50L |
75L |
75L |
75L |
|
Dust emissions |
<2Sg/ m3 |
<2Smg/m3 |
<2Sg/ m3 |
<25 mg/m3 |
<25 mg/ m3 |
|
Dust removal fan |
3.0 KW |
5.5 KW |
5.5 KW |
7.S KW |
7.S KW |
|
Air volume of separator |
8.5m3 /min |
8.5m3 / min |
10m3 / min |
10m3 / min |
10m3 /min |
|
Gas source pressure |
2-7bar |
2-7bar |
2-7bar |
2-7bar |
2-7bar |
|
Gas consumption （m3/min) |
8-10 |
8-10 |
12-14 |
12-14 |
20-24 |
|
Power Supply (V) /Power |
380/50Hz Three phase five wire system |
380/50Hz Three phase five wire system |
380/50Hz Three phase five wire system |
380/50Hz Three phase five wire system |
380/50Hz Three phase five wire system |
|
Total power (KW) |
6.S KW |
8 KW |
9 KW |
10KW |
12.5 KW |
|
Working temperature range |
-10℃-45℃ |
-10℃-45℃ |
-10℃-45℃ |
-10℃-45℃ |
-10℃-45℃ |
|
Whole machine noise |
<90db |
<90db |
<90db |
<90db |
<90db |
|
Machine weight （KG) |
2550 |
2750 |
3250 |
3450 |
3750 |

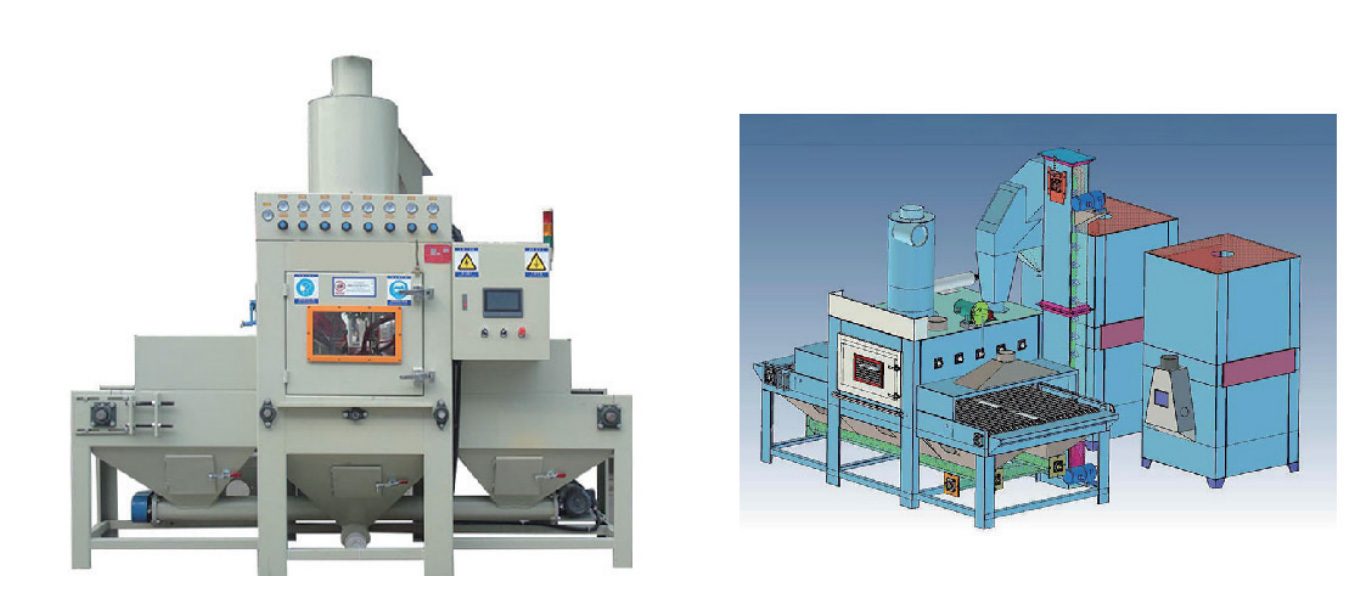

Prototype Display
